Products
Glass Material
Multi-GL
To meet increasingly diverse needs, we have developed "Multi-GL," a composite glass lining created by combining our high-performance GL materials.

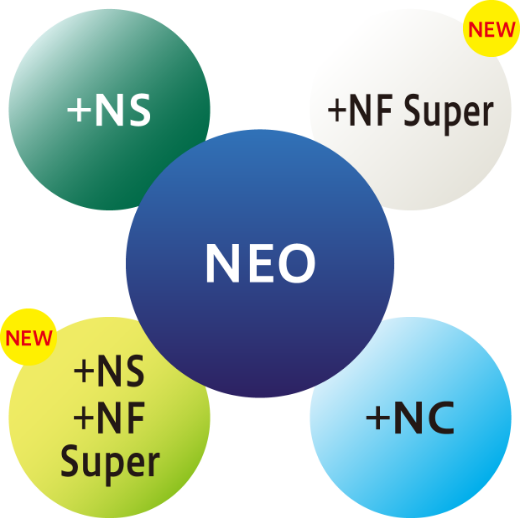

We offer a lineup of products that combine two or more of these high-performance features, such as the four types listed below, to suit a wide range of customer requirements.
NEO+NS+NF Super
A Multi-GL with enhanced heat conductivity, anti-static properties, and ultra-low sodium elution.
NEO+NS
A Multi-GL with enhanced heat conductivity and anti-static properties.
NEO+NF Super
A Multi-GL with enhanced heat conductivity and ultra-low sodium elution.
NEO+NC
A Multi-GL with enhanced heat conductivity and high visibility.
High Performance Glass Lining
World's First High Thermal Conductivity Glass
NEO-GL
- Features
-
- Shortens manufacturing lead times and helps reduce costs
- Helps improve product quality and yield
- Mitigates impact of decrease in S/V ratio during scale-up
Simulations can be performed under specific operating conditions

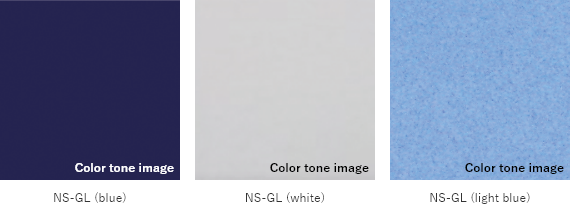

Colors are for reference and may differ from actual product

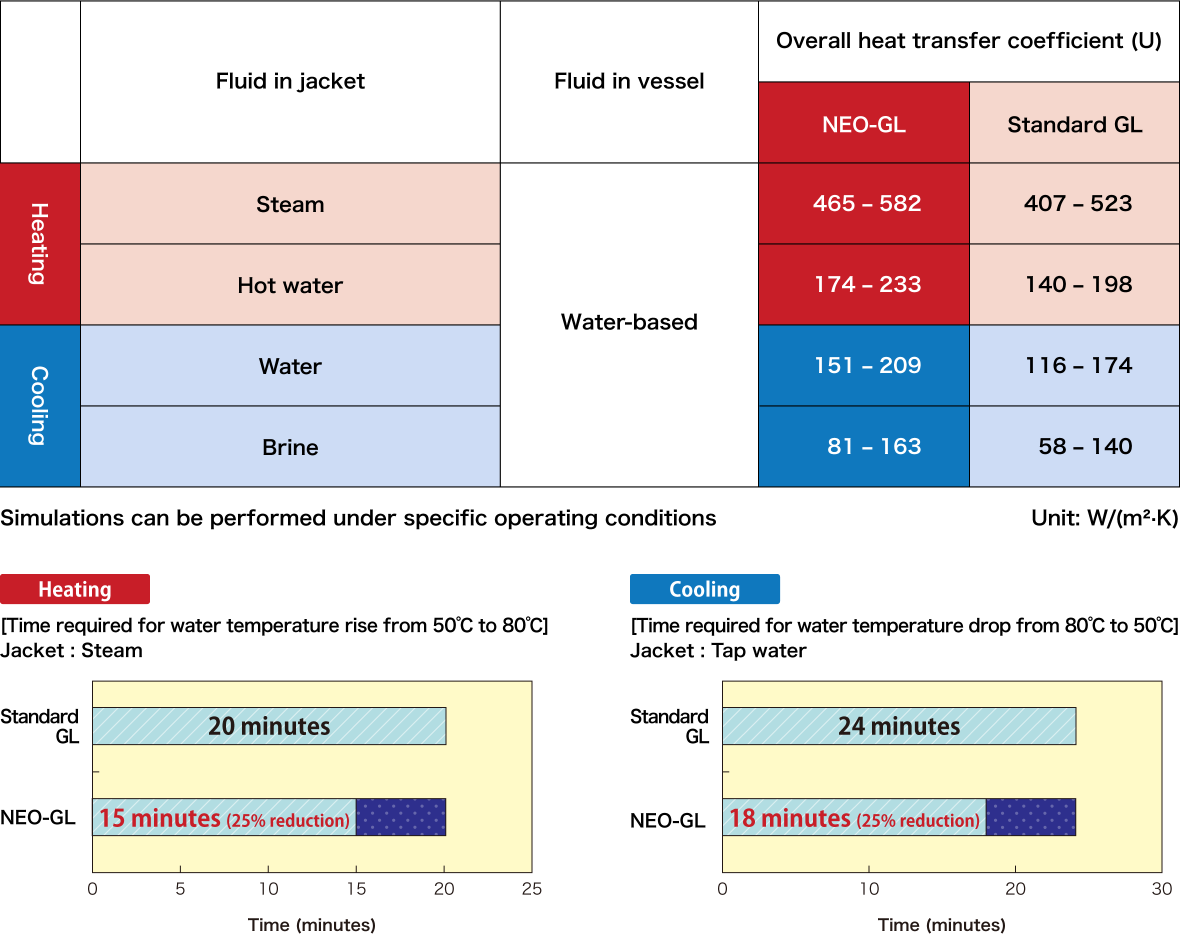

Comparison between standard GL and NEO-GL
World's First Antistatic Glass
NS-GL
- Features
-
- Utilizes volumetric conductivity

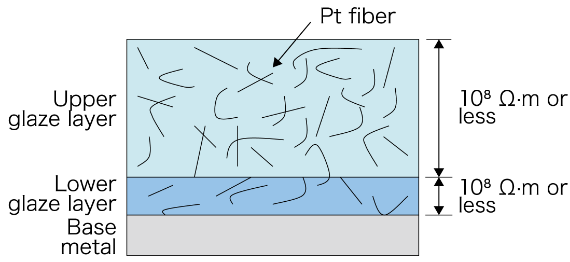

Non-spark GL has platinum fibers uniformly dispersed in the glass lining layer in three dimensions, so static electricity is transmitted volumetrically through the glass lining layer and flows to the base metal. Since all the layers are conductive, even corrosion or wear on the glass lining surface will not cause a drop in conductive performance. - Excellent antistatic performance
Non-spark GL has proved excellent antistatic performance based on Corona charge test evaluations.
- Utilizes volumetric conductivity
World's First Low Sodium Leaching Glass for Electronic Materials
The manufacturing of electronic materials requires increasingly stringent control of metal ions to meet the ever-advancing need for the miniaturization of semiconductor circuits.
We have improved our sodium-free glass lining further to achieve even higher purity.
NF-GL
- Features
-
- World's first glass lining for high-purity chemicals such as photoresists and resins
- Sodium ion leaching is less than 1/10 of conventional GL
- Helps shorten pre-cleaning time
- Helps to reduce sodium ion removal processing in the post process
NF-GL Super
- Features
-
- Reduces sodium ion leaching by about 99.6% below standard GL and about 80% below NF-GL
- Helps shorten pre-cleaning time even more
- Helps to reduce sodium ion removal processing in the post process
- Corrosion resistance is equivalent to standard GL and NF-GL
Leaching amounts of various metal ions
High-Visibility Glass
NC-GL

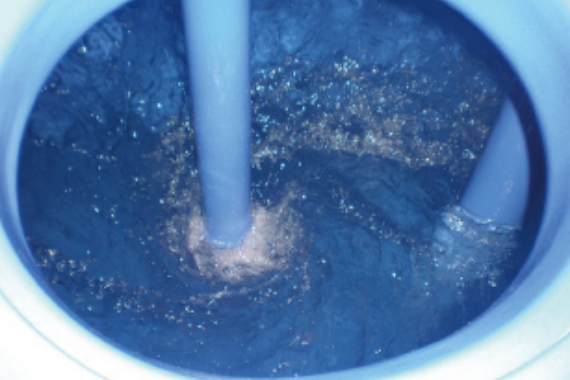

- White and cobalt dots make it easy to find deposits
- Corrosion resistance is equivalent to standard GL

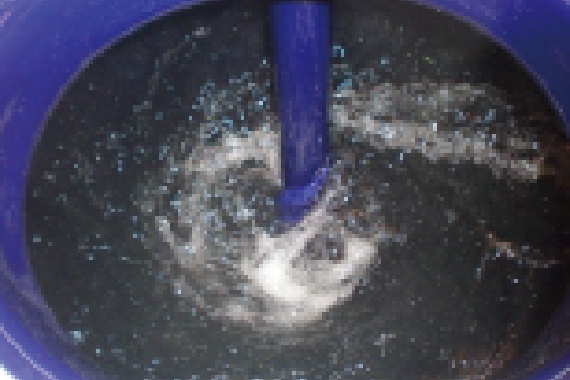

Standard GL
GL-400
The standard glass which serves multipurpose use for its excellent all-around performance.
It has outstanding acid resistance and can be used in any process where glass lining is desired.
