REACTOR
Glass-lined equipment is made out of a corrosion-resistant composite material created by fusing a layer of chemically resistant glass to high-strength steel plate at high temperature.
Agitators (B Series)
Glass-lined REACTOR, made out of a composite material with exceptional corrosion resistance, are widely used in advanced industries such as chemical processing, pharmaceuticals, and electronic materials manufacturing.

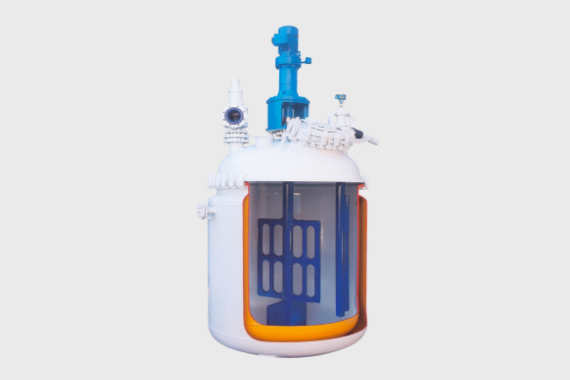

Glass Lining Maxblend Reactor
Glass Lining Maxblend Reactor is a multifunctional reaction vessel that integrates NGK Chemitech Corporation’s advanced glass-lining technology with the agitation expertise of Sumitomo Heavy Industries Process Equipment Co., Ltd. It leverages decades of proven engineering experience, combined with the latest R&D innovations, to meet diverse customer requirements.
- Quickly achieves complete homogenization
- Handles a broad viscosity range
- Consistent, uniform flow characteristics
- Superior heat transfer efficiency
- Stable performance with liquid level variations
- Uniform solid dispersion
- Minimal adhesion
- Easy particle size control
- Outstanding gas dispersion properties
- Exceptional corrosion resistance by Glass Lining
Advantages of Maxblend
Quickly achieves complete homogenization

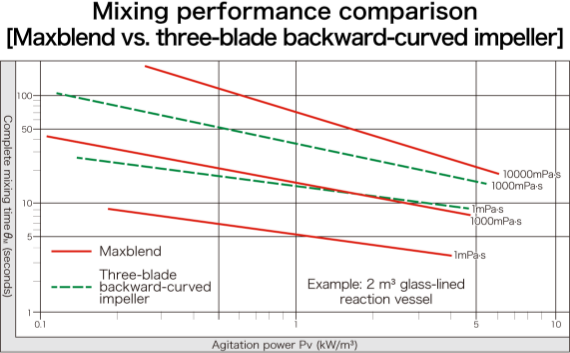

The innovative flow pattern enables faster uniform mixing compared to conventional impellers.
Handles a broad viscosity range

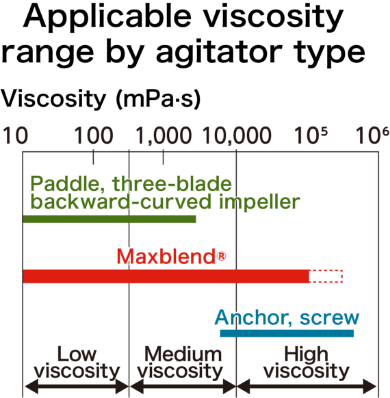

Unlike conventional impeller agitator, Maxblend maintains stable mixing performance across a broad range of viscosities, making it ideal for processes with fluctuating liquid levels and multi-product operations.
Superior heat transfer efficiency

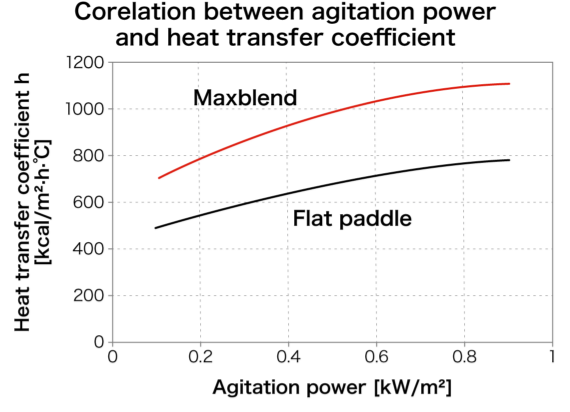

Maxblend creates a strong, uniform flow along the entire vessel wall, resulting in higher heat transfer coefficients. Combined with its exceptional mixing capability, it ensures uniform temperature distribution throughout the vessel.
Furthermore, unlike multi-stage impellers, it exhibits minimal variation in heat transfer performance when liquid levels change, making temperature control at ease.

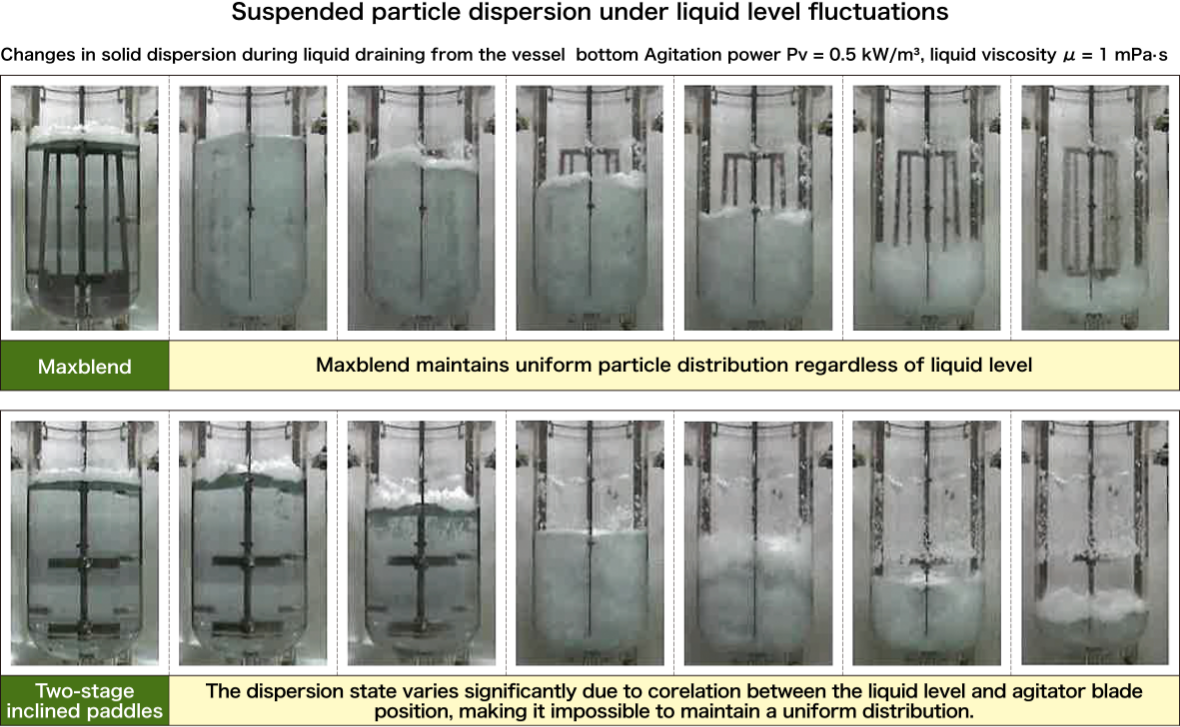

Stable performance with liquid level variations
Conventional multi-stage impellers suffer from circulation flow instability when liquid level changes. Maxblend ’s continuous vertical blade profile maintains stable mixing performance regardless of liquid volume.
(This is realized because the circulation flow discharge is not located at the vesseel bottom, preventing flow pattern disruption when the liquid level changes.)
Uniform solid dispersion
A strong discharge flow from the vessel bottom results in a uniform dispersion of solids at lower rotation and power. Additionally, there are no local high shear areas near the blades as seen in conventional agitator blade, minimizing the physical breakage of solid particles.
The graph compares the degree of crystal fragmentation after 18 hours of continuous agitation, per type of blades, in which crystal particles sized from 590 to 1000 μm uniformly dispersed.
Easy particle size control

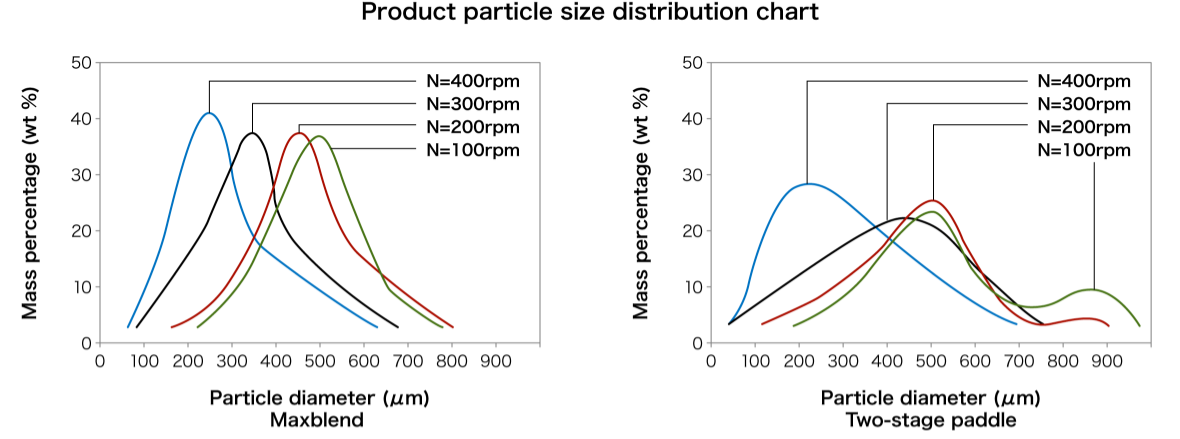

Unlike conventional impeller agitator, Maxblend provides a uniform shear field throughout the entire vessel, maintaining particle size distribution in a narrow band during suspension polymerization and crystallization processes. Also, particle size can be precisely controlled simply by adjusting the rotation speed.

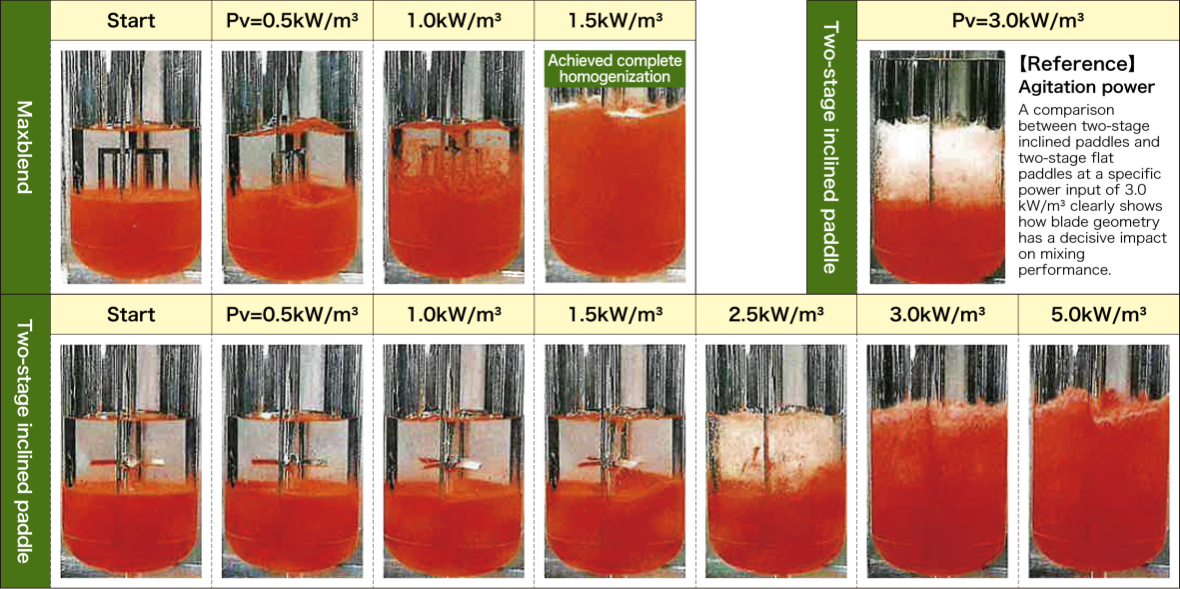

Heterogeneous viscosity mixing test
Agitation conditions
- Low viscosity: Kerosene (50 vol%, specific gravity 0.8, viscosity 1.3 mPa·s, transparent)
- High viscosity: Starch syrup (50 vol%, specific gravity 1.4, viscosity 4000 mPa·s, red)
Two-blend, Three-blend agitator type Reactor

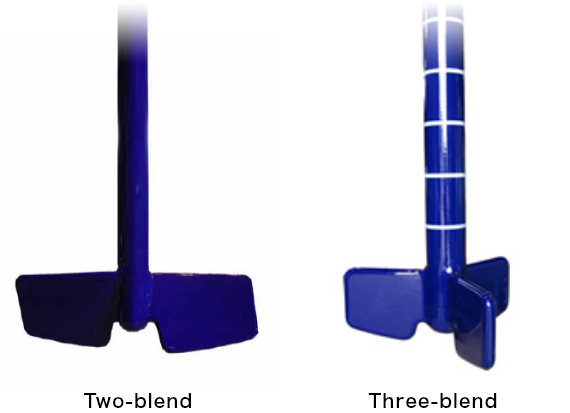

We offer types of multipurpose agitator blades, suitable for a wide range of applications, from laboratory-scale testing to full-scale production. Selection from suitable agitator types, eg. angled blade which offer specific discharge direction and shear characteristics can be optimized to meet specific process requirements.
A comprehensive lineup is available, offering configurations of 2–3 blades per stage and multiple-stage arrangements. This flexibility enables efficient operation across diverse process conditions, including mixing, chemical reactions, and polymerization.
- Product characteristics
-
- Suitable for small-batch operations with minimal liquid volume
- Multipurpose applications
- Easy scale-up

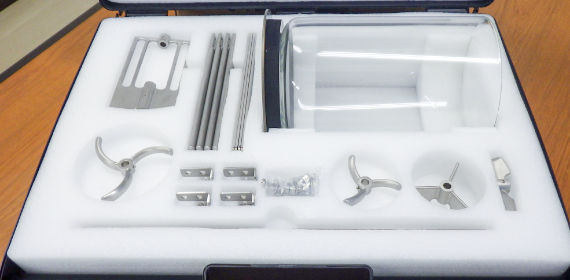

Agitator blade test equipment
We offer dedicated test units for evaluating flow patterns with various agitator blade designs. Test equipment is available for rental upon request.
Using simulated process fluids, you can directly observe and verify the internal flow behavior in the test vessel.
Specifications
| Capacity | 3 L (internal diameter 150 mm x height 250 mm) |
|---|---|
| Material | Body: Glass Agitator blades: SUS304 |
| Blade types | Maxblend , three-blend, two-blend, three-blade backward-curved impellers |
| Test examples | Mixing, particle suspension, etc. |
Reactor
Standard agitator type Reactor (Impeller, anchor and turbine agitator)
In addition to advanced blade designs, we also supply a wide range of proven, conventional agitator blades. Our team can recommend the optimal blade selection to match your specific process requirements.
Flow patterns

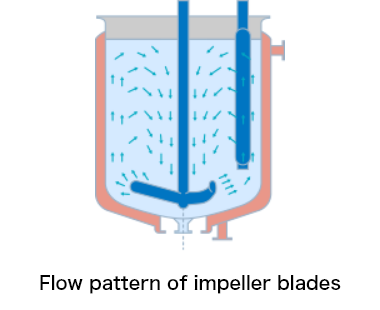

Impeller blade (Three-blade backward-curved)
Draws fluid along the shaft axis and discharges from the blade tips, generating an upward circulation loop.

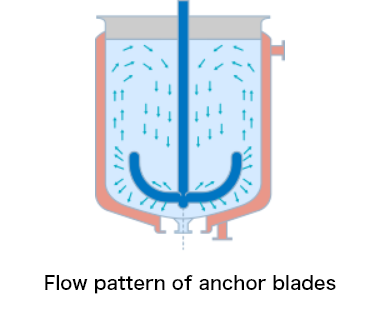

Anchor blade
Draws fluid from center and discharges from the agitator shaft end, creating upward and downward convection zones bordered by the midsection of the vertical blades.

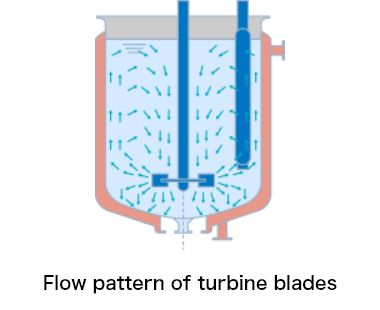

Turbine blade
Draws fluid from middle of upper and lower blades and discharges from the blade tips, generating upper and lower circulation loops.
