Products
Valve

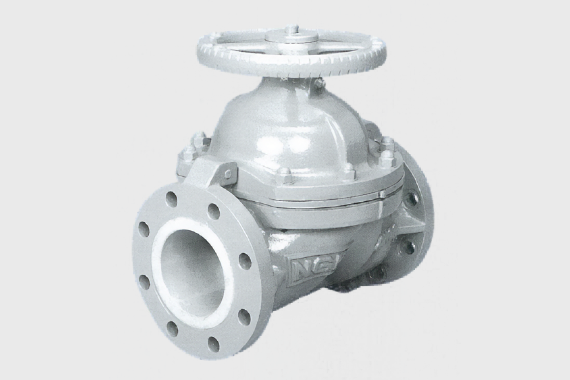

Ceramic Diaphragm Valve Type VD
- This valve features ceramic materials for the wetted parts, armoured by a ductile cast iron body, offers superior corrosion and heat resistance.
- It provides a nearly linear flow rate in relation to the valve opening, so it is ideal for automated flow control.
- Even in horizontal installations, by tilting the valve stem during piping allows for a piping layout with minimal fluid retention.
Example Application
Flow regulation of corrosive liquids

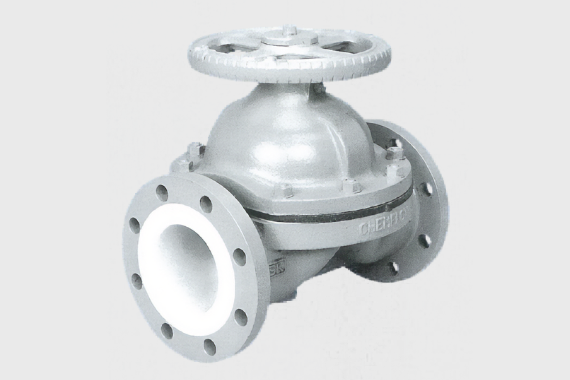

Chemiflow Diaphragm Valve Model VM-T
- The VM type is a valve with a ductile cast iron body lined with PFA, offering outstanding corrosion and heat resistance.
- The bonnet and diaphragm are shared with our Ceramic Diaphragm Valve Type VD, minimizing the need to keep spare parts in stock.
- Even in horizontal installations, by tilting the valve stem during piping allows for a piping layout with minimal fluid retention.
Example Applications
Chemical transport lines for the electronics industry
Pharmaceutical and agrochemical manufacturing plants

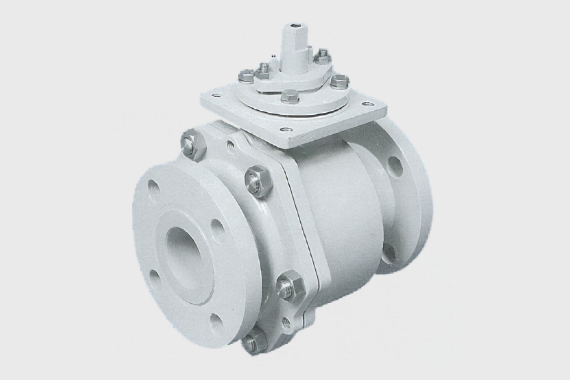

Ceramic ball valve Type VQ
- The wetted parts consists of ceramics and fluororesin materials, offering superior corrosion resistance.
- It achieves low operating torque (approximately 50% reduction in torque compared to our VE-type ceramic valve) using the floating ball structure, which separates the shaft and the ball.
- The low torque characteristic also allows for a more compact actuator.
Example Applications
Pharmaceutical and agrochemical synthesis plants
Permeable chemical lines and vacuum lines

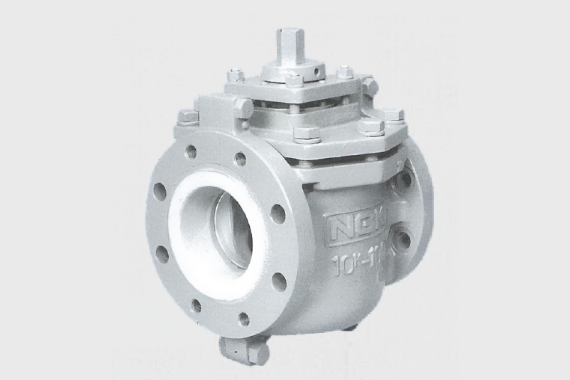

Ceramic plug valve (Concentric plug) VE type
- The wetted parts consists of ceramics and fluororesin materials, offering superior corrosion resistance.
- The valve seat, consisting of a ceramic plug and a fluororesin sheet, ensures smooth opening and closing while reliably sealing the fluid.
- The face-to-face dimensions conform to ISO standards, resulting in a compact design.
Example Applications
Pharmaceutical and agrochemical synthesis plants
Flue gas desulfurization (FGD) plants
Process lines with permeable chemicals, vacuum lines

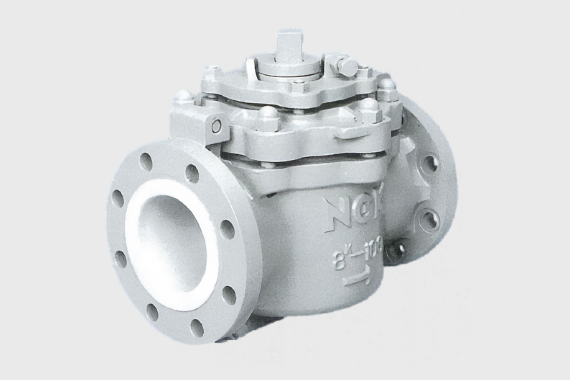

Ceramic plug valve (Eccentric plug) VR type
- This is a highly proven corrosion-resistant plug valve.
- It uses a unique eccentric plug mechanism for fluid shutoff, ensuring a reliable seal. The valve seat can be re-tightened using only the handle.
Example Applications
Pharmaceutical and agrochemical synthesis plants
Process lines with permeable chemicals, vacuum lines

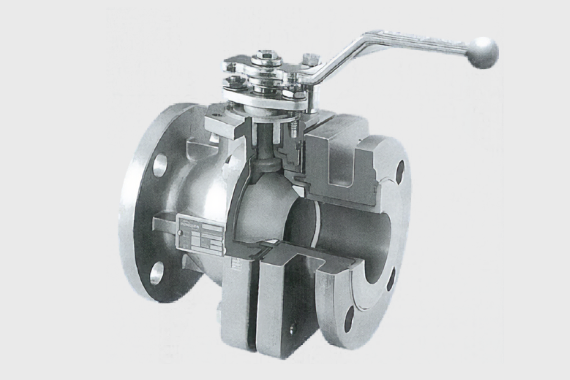

Atomac ball valve (Made by FLOWSERVE)
- This is a high-performance, reliable, and safe ball valve manufactured by FLOWSERVE.
- The lining material is PFA, applied with sufficient thickness and mechanically bonded to the metal armor, providing excellent resistance to permeation and vacuum.
- Its unique free-floating system ensures outstanding sealing performance across a wide pressure range, from low to high.
- The body lining is molded to match the ball shape, minimizing fluid retention, making it ideal for fine chemical plants.
Example Applications
Petrochemical plants
Pharmaceutical and agrochemical synthesis plants
High-temperature, high-pressure, and vacuum lines
High-purity chemical production lines

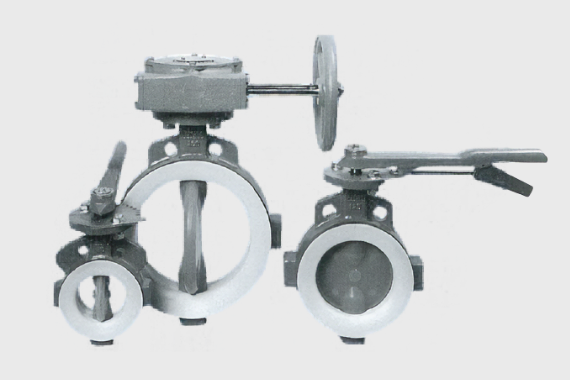

Chemiflow Butterfly Valve VS Type
- This is a compact butterfly valve available in sizes up to 200A.
- All wetted parts are made of fluororesins (PTFE and PFA), offering excellent corrosion and heat resistance.
- The unique stem seal design ensures superior sealing performance.
- With no fluid retention and minimal ionic elution from the lining resin, it is highly effective in ultra-clean fluid lines.
Example Applications
High-purity chemical production plants
Pharmaceutical and agrochemical manufacturing plants
Food processing plants

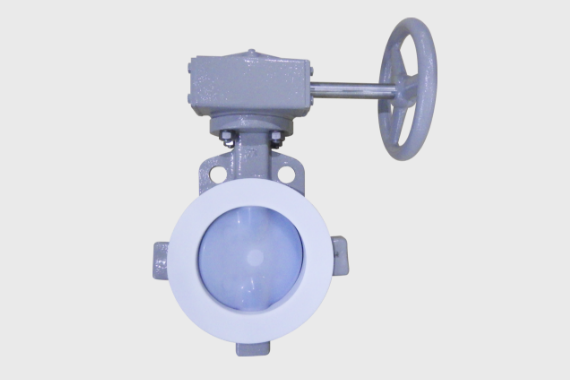

Chemiflow Butterfly Valve VF type
- This butterfly valve is ideal for large-diameter corrosive fluid lines.
- All wetted parts are made of fluororesins (PTFE and PFA), providing excellent corrosion and heat resistance.
- Available in sizes from 250A to 450A, with a full range of pneumatically actuated models also offered.
- The unique stem seal design ensures superior sealing performance and durability.
Example Applications
Brine and gas lines in electrolysis plants
Surface treatment lines in steel processing plants
Chemical fiber manufacturing plants
