Ceramic Valves

Features

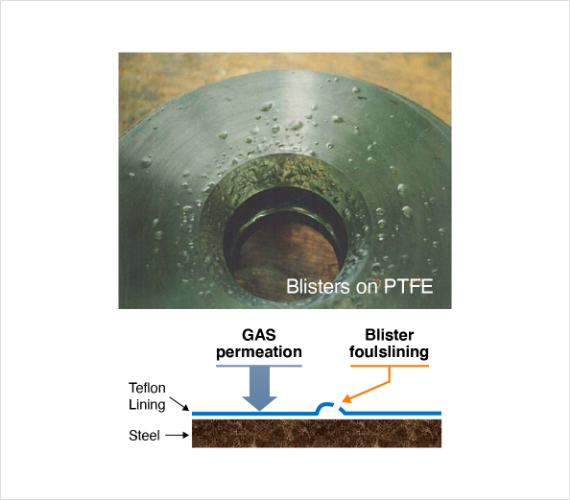

Blisters on Teflon
  • Excellent corrosion resistance

    Ceramic valves exhibit excellent corrosion resistance to most acids and solvents, except hydrofluoric acid. (Not applicable to alkaline solutions.) In addition, there is no pitting corrosion or crevice corrosion that can occur in corrosion resistant metals such as titanium.

  • Excellent durability

    Since ceramics for the chemical industry is a dense material that does not allow liquid permeation.
    It does not cause blistering or swelling which is a common problem with resin valves and provides stable sealing performance and excellent durability.

Product lineup

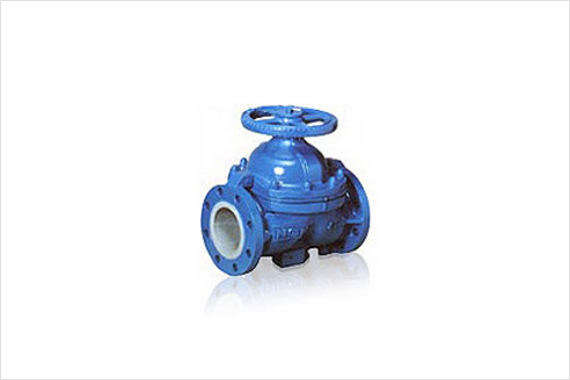

Ceramic Diaphragm Valve VD type

Ceramic Diaphragm Valve Type VD

The body is made of high-strength ceramic with a metal cover and is the most proven corrosion resistant valve in the industries with vast supply records.
Since the flow rate is almost proportional to the degree of opening, it is ideal to use as a automatic valve for flow control. In addition, the bonnet can be replaced while the valve body is installed in the piping.

Application examples

Use in a wide range of lines, such as flow control of corrosive liquids

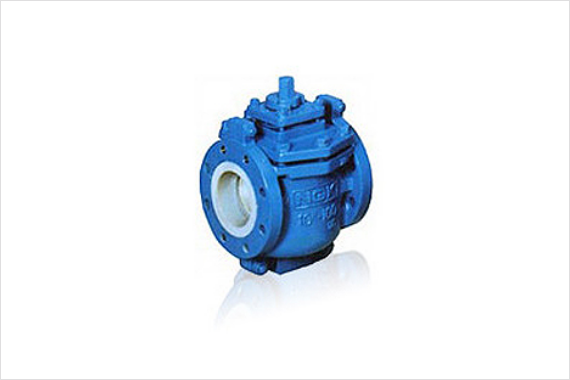

Ceramic plug valve (Concentric plug type) VE type

Ceramic plug valve (Concentric plug type) VE type

Straight flow valve with low valve resistance. The wetted part is a combination of ceramics and fluoroplastic, which provides excellent corrosion resistance. The valve seat is made of ceramic plug and fluoroplastic seat for smooth opening and closing and secure sealing to fluid. The face-to-face distance conforms to ISO standards and is compact.

Application examples

Use in permeable chemical and vacuum lines such as medical and agricultural chemical synthesis plants, dewatering plants, etc.
