Chemflow Valves

Features

  • Integrally molded product

    All wetted parts are lined with integrally molded fluoroplastic. Therefore, there are no welded or fused parts, and the lining is reliable.

  • Thick Wall Lining

    The lining material is thick-walled and mechanically bonded to the metal armor, providing excellent resistance to penetration and vacuum.

  • High sealing performance

    NGK’s unique valve seat and gland seal mechanism provides excellent sealing performance.

Caution

These products are among the restricted product types listed in Appended Table 1 of the Export Trade Control Order. Export requires export permission based on the Foreign Exchange and Foreign Trade Act and other relevant laws.

Product lineup

Chemiflow Diaphragm Valve Model VM-T

Chemiflow Diaphragm Valve Model VM-T

  • Type VM-T is a valve with ductile cast iron armor and PFA lining ?which has particularly excellent corrosion and heat resistance.
  • The bonnet and diaphragm are the same as our VD ceramic diaphragm valve, which can minimize the inventory of consumable parts.
  • Even in the case of horizontal equipment, the valve can be mounted on the piping with the stem tilted to create a piping line with less liquid residue.
Application examples

Chemical transfer lines for the electronics industry, medical and agricultural chemical manufacturing plants, etc.

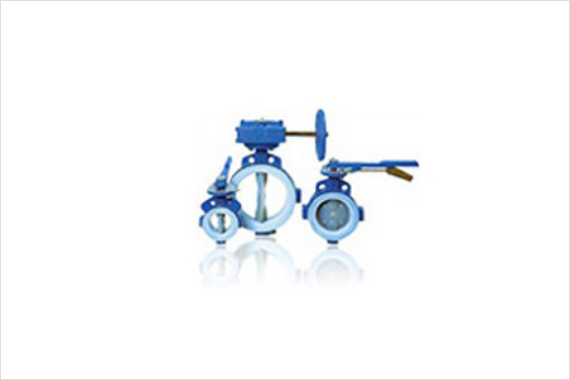

Chemiflow Butterfly Valve VS Type

Chemiflow Butterfly Valve VS Type

  • Compact butterfly valve for up to 200A in diameter.
  • All wetted parts are made of fluoroplastic PTFE and PFA for excellent corrosion and heat resistance.
  • Excellent sealing performance due to unique stem seal.
  • No residue of liquid and almost no elution of ions from the lining resin, making it an excellent choice for high purity process lines.
Application examples

Use in high-purity chemical production plants, medical and agricultural chemical production plants, food industry plants, etc.

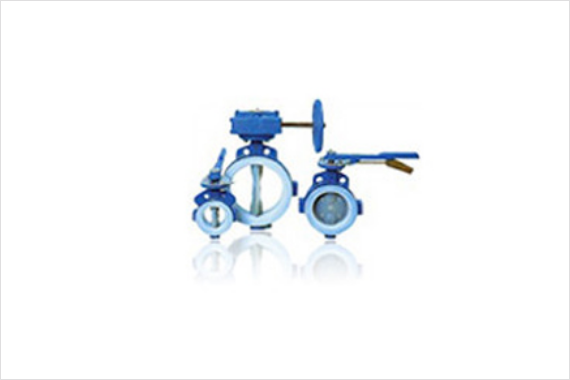

Chemiflow Butterfly Valve VF type

Chemiflow Butterfly Valve VF type

  • Butterfly valve is the best choice for large diameter corrosive fluid lines.
  • All wetted parts are lined with fluoroplastic PTFE and PFA, and have excellent corrosion and heat resistance.
  • Available in diameters from 250A to 600A, pneumatic and electric automatic valves are also available.
  • Unique stem seal provides excellent sealing performance and durability.
Application examples

Use in large-diameter lines such as salt water and gas lines in electrolysis plants, steel plate surface treatment plants, and chemical fiber manufacturing plants.
